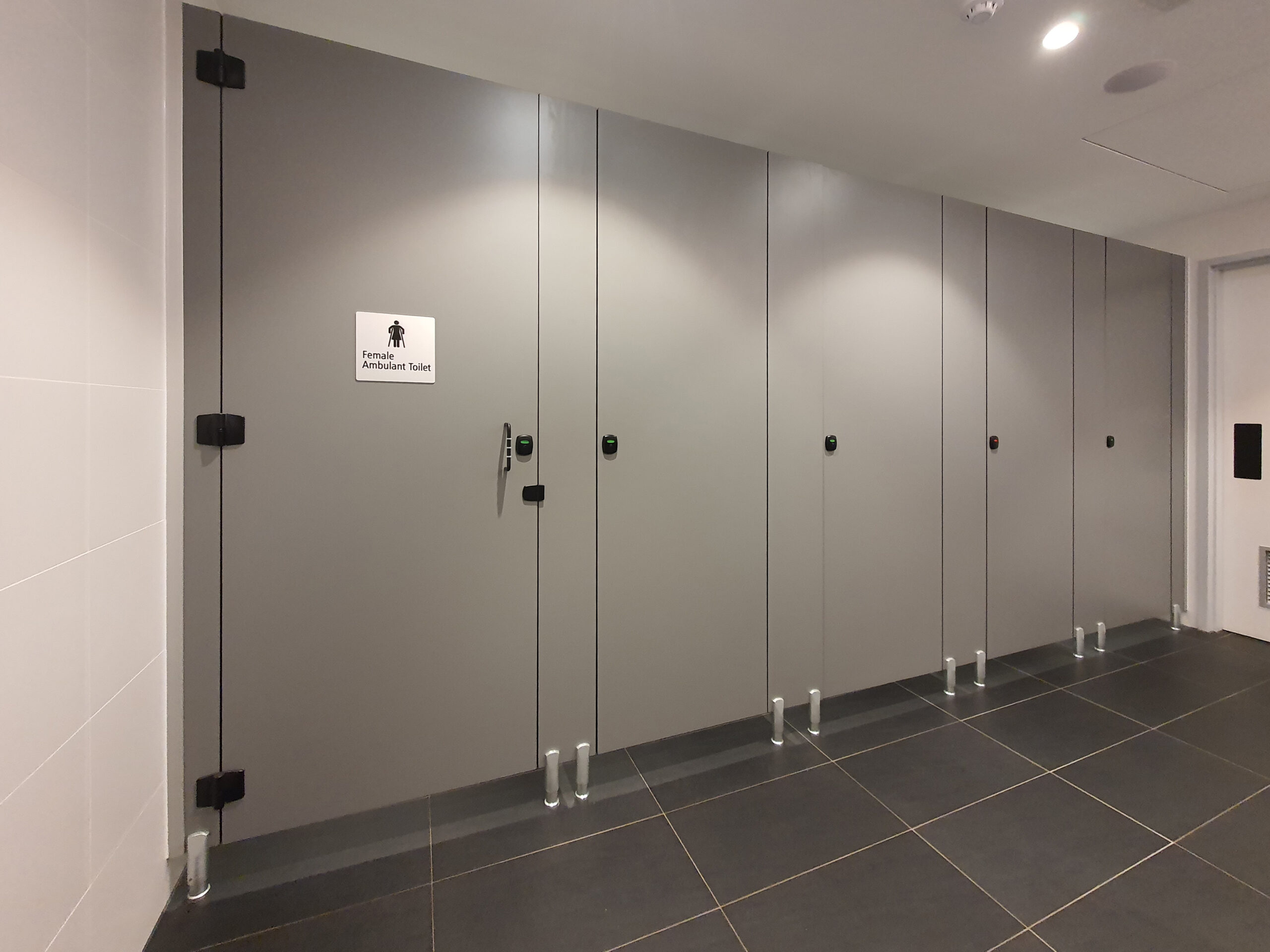

ELEGANTE – SIMPLE ELEGANCE

Pedestal Mounted Offset Overhead Braced / Slimline Headrail Cubicle Partitioning Systems

Available in 13mm Compact Laminate and 18mm / 32mm MR Board.
Suitable for Toilet & Showers Partitions. Shower partitions available in 13mm Compact Laminate only.

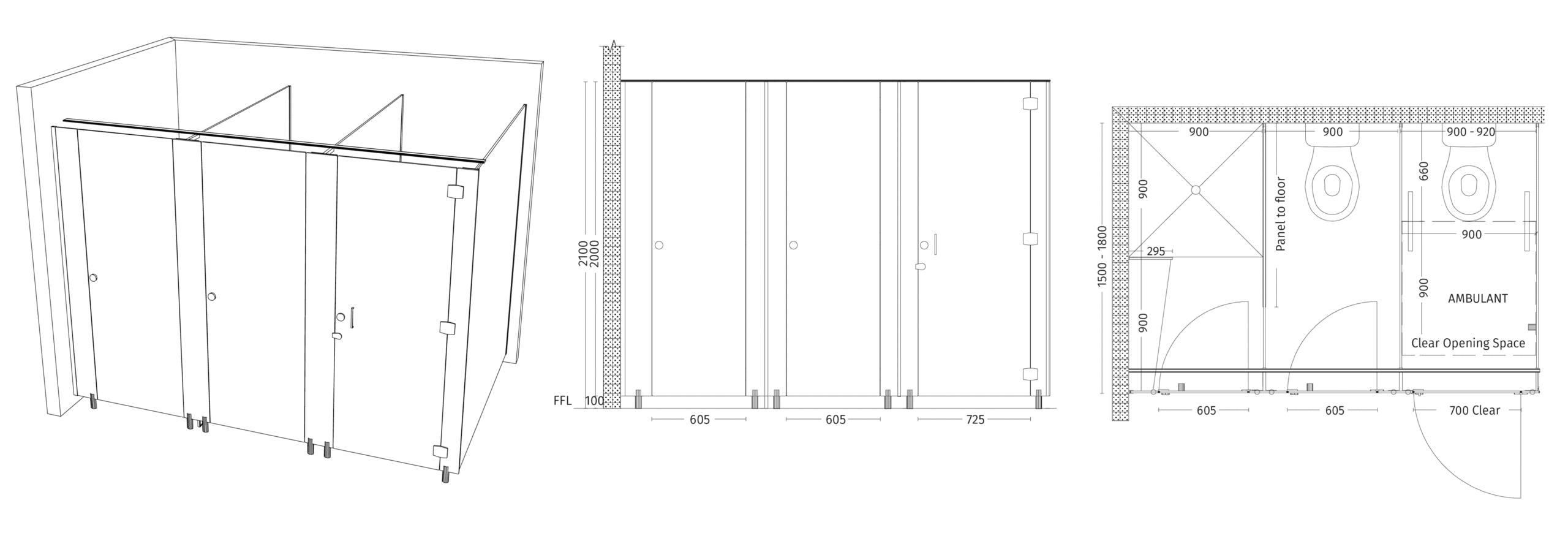

SPECIFICATIONS

Overall Height
2100mm

Overall Depth
1500mm to 1800mm

Divisional Panels
2100mm high including 100mm floor clearance

Frontal Panels
2100mm high including 100mm floor clearance,
minimum width 250mm, maximum 450mm

Doors
2000mm high x 600mm wide
with 100mm floor clearance

Aqua Series Door Hardware
Available in satin chrome
or satin matte black finish

Headrail
Offset clear anodised aluminium slimline headrail

Pedestal
Clear anodised aluminium foot

Wall Channels
Clear anodised aluminium U channel

OPTIONS

Rebated Doors
Privacy profile option available

Powder Coating Option Available
To match board colour

Door Hardware
Bolt Through Hardware Available

AquaSeries Door Hardware

Clear Anodised Aluminium, Satin Finish

Black Enamel Coated, Satin Finish

Lift off spring hinges

PRODUCT SHOWCASE

DOWNLOADS

Aqualoo cubicle partitioning systems are low maintenance, water, impact, graffiti resistant and fire retardant.

Compact laminate cubicle partitioning systems meet Group 3 Classification (in accordance with AS 5637.1-2015).

A family owned company, WCCI has been in operation since 2000 with distributors in SA, NSW, VIC and QLD – Aqualoo offer supply and install or offer flat pack options Australia Wide.
